Candidate rating
- Capacity
- 2000 kVA
- Voltage
- 34.5kV
- Construction
- Oil-immersed
SIBIAN-35-0007

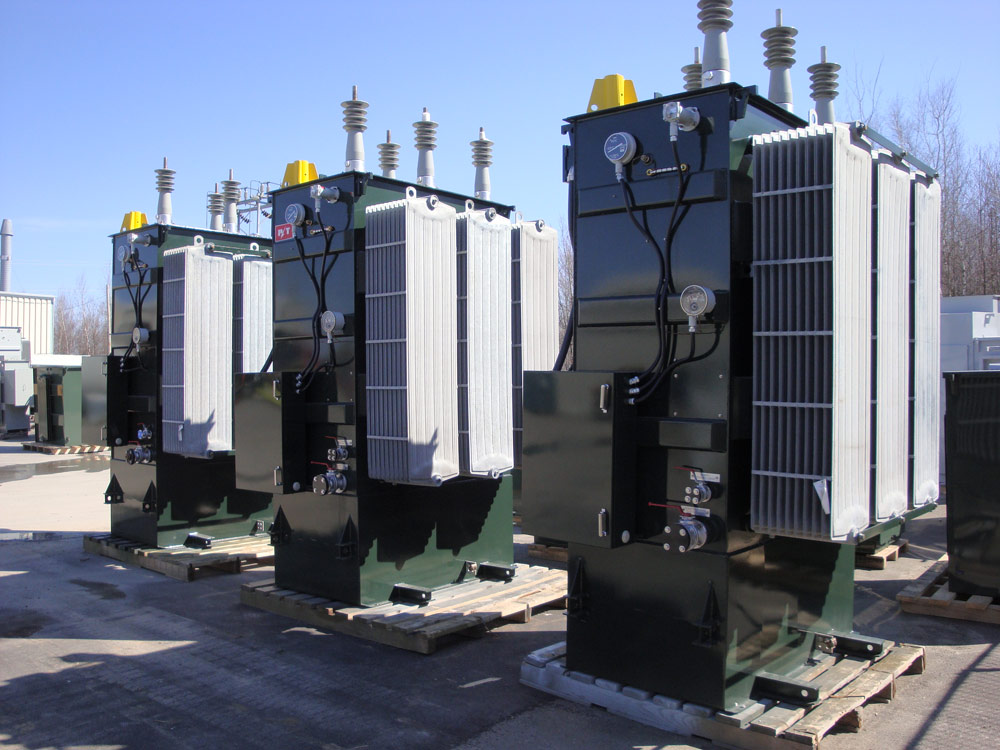

2000kVA Grounding Transformer and Neutral Grounding Resistor 34.5kV Oil-immersed for Neutral Grounding and Earth Fault
2000 kVA · 34.5kV · Oil-immersed · ONAN/ONAF
US$105,000–131,000/ set · MOQ 1Indicative EXW China range; final quotation follows technical review.
Send technical RFQProduct information
One product reference and five factual information panels for buyer review.
Project inputs
- system Voltage34.5kV
- system Earthing MethodBuyer to confirm
- available NeutralBuyer to confirm
- fault CurrentBuyer to confirm
Application
neutral grounding and earth-fault protection
Target supply context: North AmericaOperating conditions
Installation environment, ambient conditions, enclosure and applicable standards are confirmed during technical review.
Engineering & delivery
- Technical review
- Design confirmation
- Inspection and tests
- Documents and packing
Technical parameters
- Rated Capacity
- 2000
- System Voltage
- 34.5kV
- Construction
- Oil-immersed
- Cooling Method
- ONAN/ONAF
- Vector Group
- Zig-zag or project-specific
- Neutral Fault Current
- 600A
- Fault Duration
- 10s
- Package Scope
- Earthing transformer + NGR/NER panel + monitoring
- Application
- neutral grounding and earth-fault protection
- Standards context
- IEC 60076-25 and IEEE C57.32 context; final standard, impedance, fault current and duration must follow the project specification.
