Metering
Voltage and current meters show the electrical operating condition.

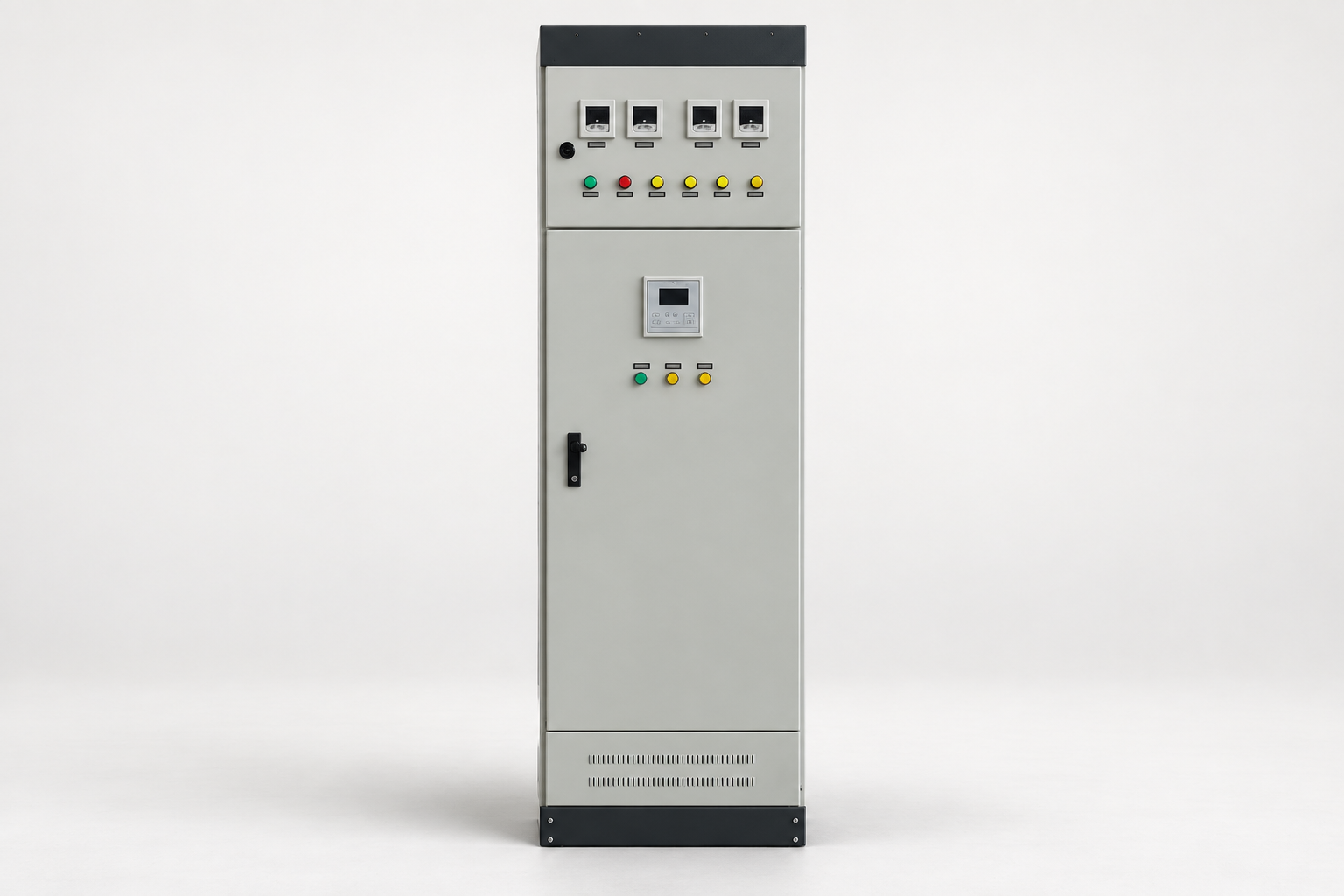

Product appearance reference · Project-specific configurationDESALTER CONTROL CABINET
Desalter Control Cabinet
Voltage control, monitoring
and protection in one place.
Installed in the electrical room, the cabinet supplies the desalter transformer and brings operating signals together.
Discuss your configuration ↗Explore the system ↓PANEL GUIDE
01 02 03 04
Read the panel at a glance.
Controller
SCR voltage settings and operating parameters; adjustment is continuous within the configured range.
Status & alarms
Green: stopped. Red: running. Amber: overcurrent, low vessel level, safety door, transformer oil level, temperature and pressure alarms.
Local buttons
Start: request operation. Stop: stop the supply. Reset: reset the alarm after the fault is cleared. DCS remote start / stop is also provided.
Colors follow the reviewed drawing: green means stopped and red means running, not necessarily a fault. Final button colors are project-specific. Based on an existing two-circuit panel drawing; simplified functional layout, not a fabrication drawing. Oil-level, temperature and pressure inputs are switch alarms. Continuous readings require transmitters.

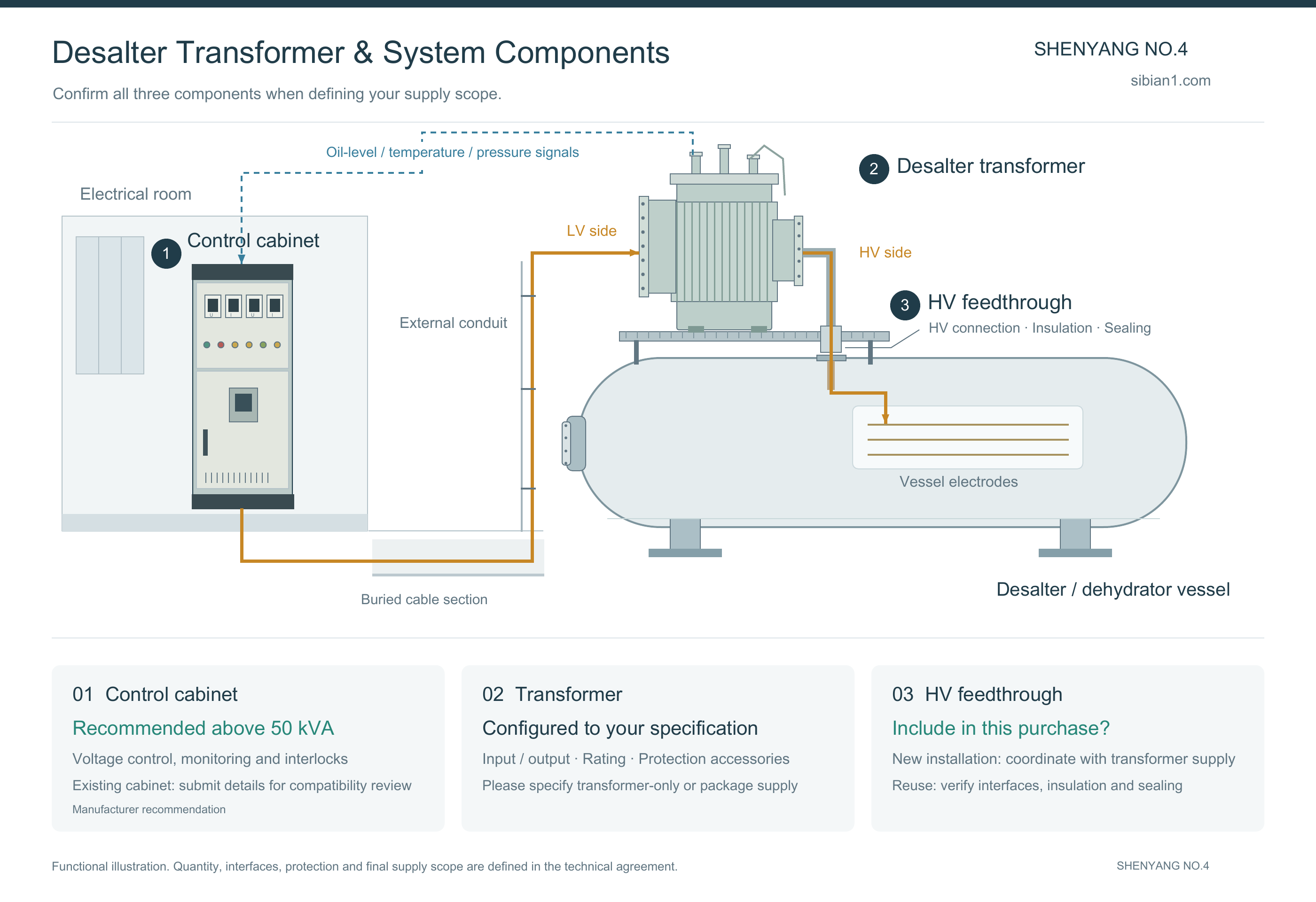

SYSTEM MATCHING
From the cabinet to the electric field.
Three components. One coordinated system.
For ratings above 50 kVA, we recommend a dedicated control cabinet.
Our supply recommendation; existing cabinets and feedthroughs can be reviewed for compatibility.
PROJECT CONFIGURATION
Contact an engineer ↗New installation or equipment upgrade?
Share the transformer ratings, quantities and existing equipment details so we can help define the supply scope.
Control circuits, monitoring, protection logic and interfaces are defined in the project technical agreement.
